Αρχική Σελίδα > Προϊόντα> Εγχυτήρες καυσίμων diesel> 3836007 Fuel Injector for D12 Engine

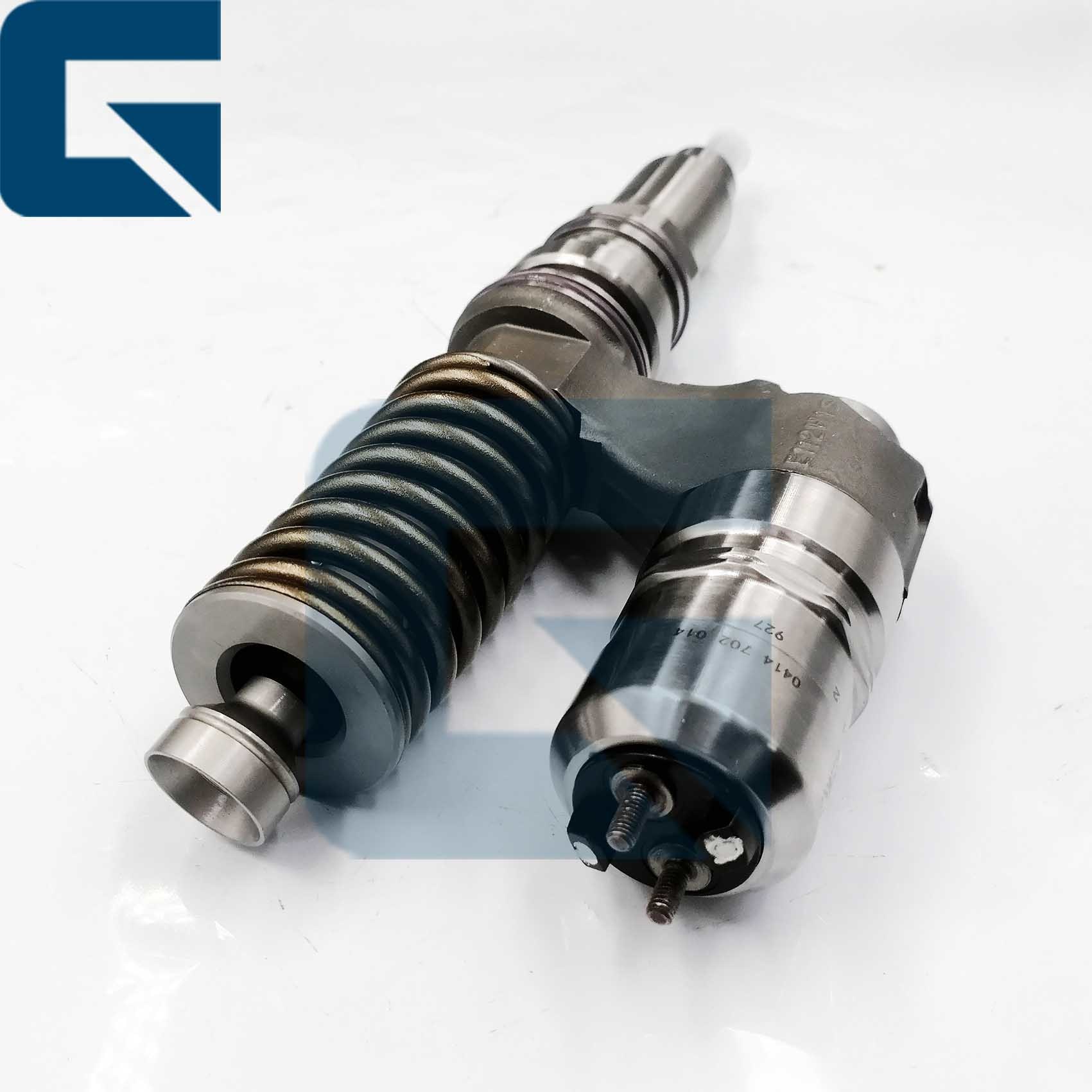

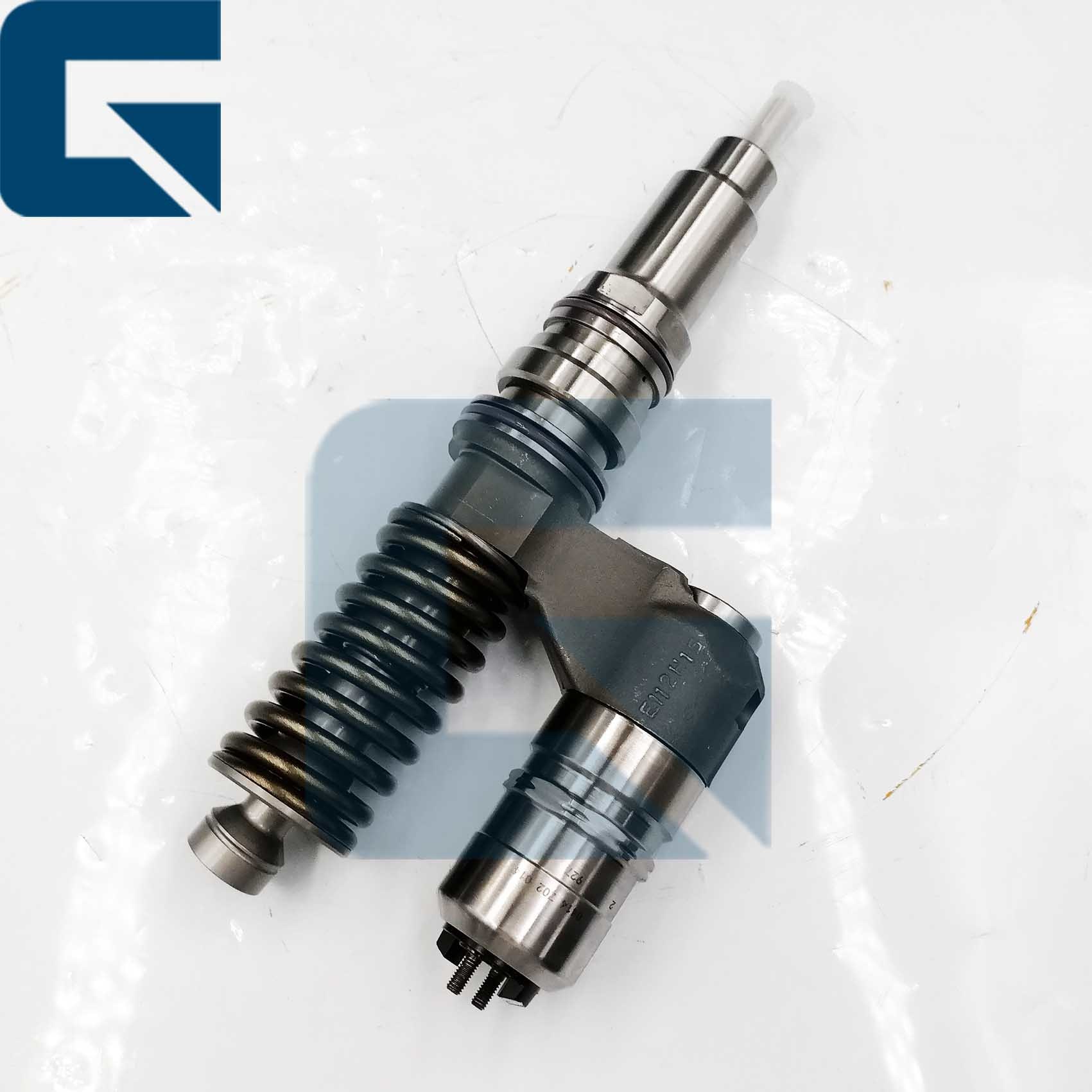

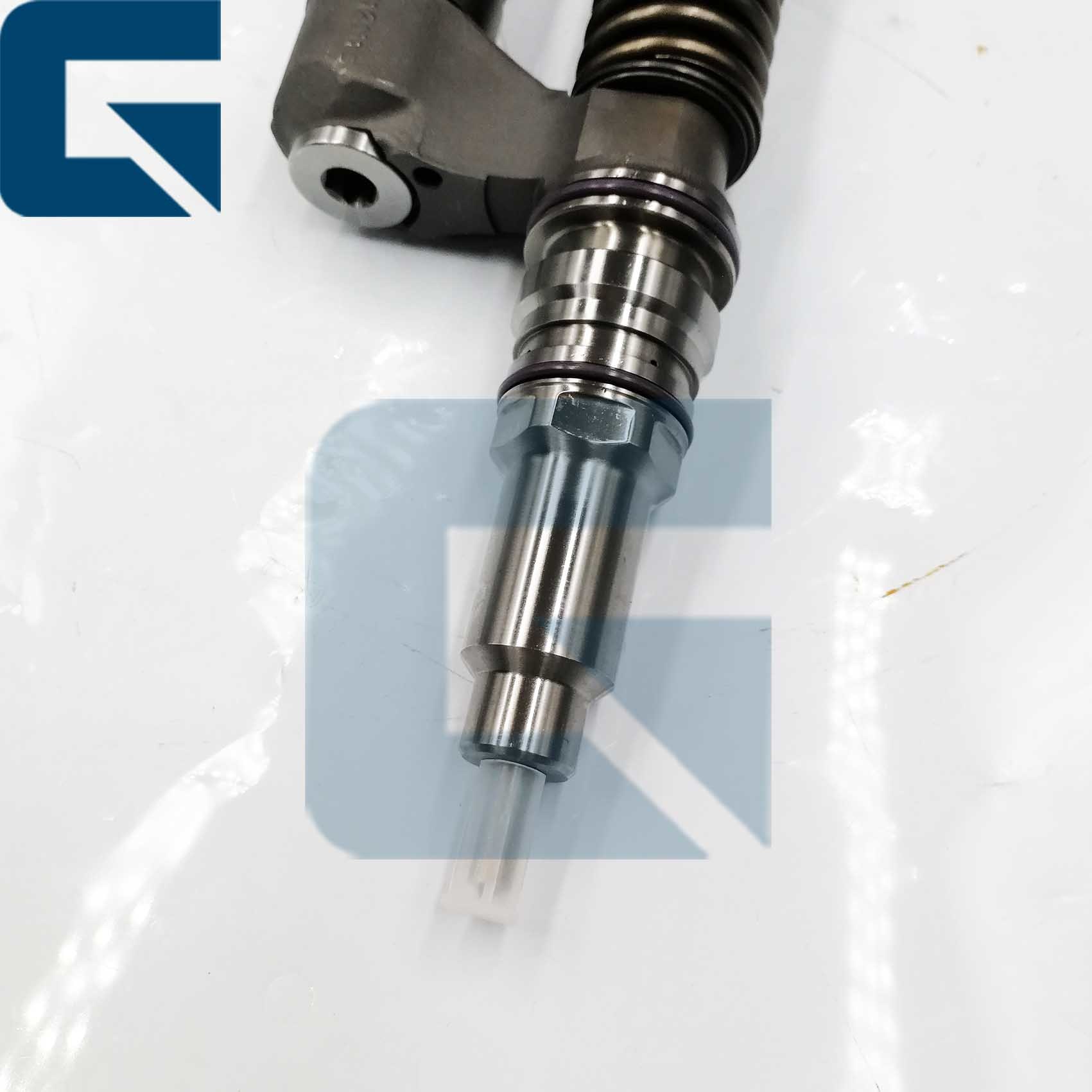

3836007 Fuel Injector for D12 Engine

3836007 Fuel Injector for D12 Engine
3836007 Fuel Injector for D12 Engine 3836007 Fuel Injector for D12 Engine 3836007 Fuel Injector for D12 Engine 3836007 Fuel Injector for D12 Engine
Βασικές πληροφορίες
Τόπος καταγωγής: Κίνα
Μάρκα: Jiajue
Αριθμό μοντέλου: Δ12
Ποσότητα παραγγελίας min: 1 τεμ
Συσκευασία λεπτομέρειες: 3836007 Ο μπεκ ψεκασμού καυσίμου για κινητήρα D12 συσκευάζεται σε τυπική συσκευασία εξαγωγής σύμφωνα
Χρόνος παράδοσης: 1-5 εργάσιμη ημέρα
Όροι πληρωμής: L/C,D/A,D/P,T/T,Western Union,
Δυνατότητα προσφοράς: 100 τμχ/μήνα
Καλύτερη τιμή Επικοινωνήστε
Λεπτομερής ενημέρωση
Όνομα προϊόντος: 3836007 Μπεκ ψεκασμού καυσίμου για κινητήρα D12 Υλικό: Ατσάλι
Τόπος καταγωγής: Γκουανγκντόνγκ, Κίνα MOQ: 1
Oem: υποστήριξη
Επισημαίνω:

D12 engine fuel injector

,

diesel fuel injector replacement

,

fuel injector for D12 diesel

Περιγραφή προϊόντων

3836007 Fuel Injector for D12 Engine
Product Overview

The 3836007 Fuel Injector is a precision-engineered component designed specifically for D12 engines, manufactured by JIAJUE in Guangzhou. This used part offers reliable performance with a 3-month warranty and fast dispatch within 5 days.

Product Specifications
Product Name Fuel Injector
Part Number 3836007
Engine Model D12
Type Engine Parts
Place of Origin GUANGZHOU
Brand Name JIAJUE
MOQ 1 Piece
Condition Used
Availability Rich Stock
Approximate Weight 2KG
Size (per piece) 20cm x 5cm x 8cm
Warranty 3 Months
Shipment Dispatched within 5 days
Product Images
3836007 Fuel Injector for D12 Engine 0 3836007 Fuel Injector for D12 Engine 1 3836007 Fuel Injector for D12 Engine 2 3836007 Fuel Injector for D12 Engine 3
Frequently Asked Questions
Q1: How do I install my fuel injector after purchasing it?
Please refer to the "Step-by-Step Installation Guide" on our product details page, which contains detailed installation instructions.
Q2: What precautions should I take before installing my fuel injector?
The installation environment must be dust-free; lubricate the O-ring with clean machine oil before installation to prevent oil leakage; ensure the O-ring is installed correctly.
Q3: Why is my engine still unusable after replacing the fuel injector?
This is common due to air trapped in the high-pressure oil rail. Cycle the engine in short bursts (no more than 30 seconds) to purge air. It may take several attempts to stabilize pressure.
Q4: Is my device compatible with this part number of fuel injectors?
If unsure about compatibility, send us your Engine Serial Number (ESN) for free verification.
Q5: How to determine if your fuel injectors need replacing?
  • Cylinder Cut-out Test: Using diagnostic software (ET), shut off cylinders one by one and observe engine speed fluctuations.
  • Fuel Rail Pressure Test: Check for internal leaks preventing system pressure buildup.
  • Back-leakage Test: Excessive back-leakage indicates severe wear of internal control valve assembly.
  • Visual Inspection: Inspect fuel injector nozzles for carbon buildup, blockage, or corrosion.
Q6: How long will it take to receive my package after payment?
Delivery time depends on your country/region and customs clearance. Contact us with your address and postal code for shipping costs and estimated delivery time.
Step-by-Step Installation Guide

HEUI (Hydraulic Electronic Unit Injection) systems are extremely sensitive to contamination. A single speck of dust can cause premature failure.

  1. Preparation: Clean the injector bores thoroughly. Ensure no carbon debris, old O-rings, or fuel/oil residue at the bottom of the seat. Inspect the injector sleeve for pitting or erosion.
  2. Lubrication: Apply clean engine oil to the three O-rings and backup rings.
Warning: Never use grease. Only use clean engine oil to ensure seals slide in without tearing.
  1. Seating the Injector: Push the injector down firmly by hand until you feel it "seat." Install the hold-down clamp and bolt.
  2. Torque Specifications: Tighten the bolt to 30 N⋅m±7 N⋅m (22 lb-ft). Over-tightening can crack the injector body; under-tightening causes combustion gas leakage.
  3. Trim Code Programming: Locate the 6-digit alphanumeric code on the top of the injector solenoid. Use ET (Electronic Technician) software to program this code into the ECM for precise fuel delivery synchronization.
Troubleshooting Guide
Issue Root Cause Solution
Black Smoke Poor spray atomization or stuck needle valve causing dripping Inspect the air filter
Hard Start Internal leakage in the injector leading to insufficient starting oil pressure Inspect the injector O-rings and internal seals
Engine Misfire Faulty solenoid valve coil or worn internal valve components Inspect wiring harness connections and replace damaged injectors
Company Profile
3836007 Fuel Injector for D12 Engine 4
Exhibition
3836007 Fuel Injector for D12 Engine 5 3836007 Fuel Injector for D12 Engine 6
Factory Environment
3836007 Fuel Injector for D12 Engine 7
Packaging & Shipping
3836007 Fuel Injector for D12 Engine 8 3836007 Fuel Injector for D12 Engine 9
